LD16

Our product lines cover LED street light, LED solar street light,LED garden light, LED bollard,LED tunnel light, LED wall light,LED road stud, LED flood light, LED panel light, LED tube, LED bulb, LED down light. Compared to traditional incandescent light

Technical Features

Body High intensity Die-casting aluminum Input Voltage 220-240V Frequency（Hz） 50 - 60
LED Lumileds / Cree / Osram CRI >70Ra IP Rate IP66
Lens Modular Optical Lens Power   >0.95 RAL Code Customized
Diffuser Tempered glass diffuser Working Temp. -35℃-+55℃ Options LED application according
to desired correlated color
temperature(CCT).
Driver PHILIPS /MEANWELL / OSRAM / INVENTRONICS Humidity 10% - 90%



  • send an inquiry
  • Download leaflet
    • On a :LSG05　　|　　The next :LSQ01
    Return

    Lighting Distribution Curve

    Responsive image

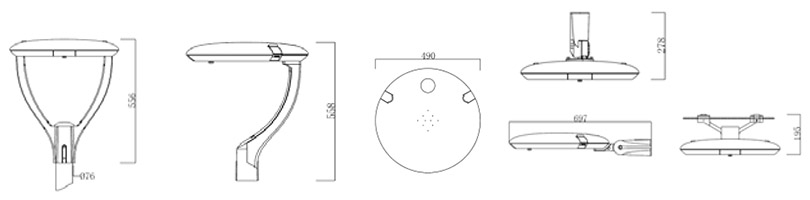

    Technical Drawing

    Responsive image

    Product Details

    Product Code

    NO

    Power

    W

    Luminous Flux

    lm

    Color Temp.

    K

    Luminous Effic

    lm/W
    LD16-40 40 4800-6000 2500-6300 120-150
    LD16 -60 60 7200-9000 2500-6300 120-150
    LD16 -80 80 9600-12000 2500-6300 120-150
    LD16-100 100 12000-15000 2500-6300 120-150
    LD16-120 120 14400-18000 2500-6300 120-150
    LD16-130 130 15600-19500 2500-6300 120-150
    LD16-150 150 18000-22500 2500-6300 120-150
