| Main Features | |||
| Optical cover / lens type | Polycarbonate | ||
| Command interface | IR remote control | Charger efficiency | >90% |
| Guarantee | 5 years | Charge controller power | 60 W |
| Materials | Die-casting Aluminium | ||
| Dimmable | Yes | Management and gradation | |
| Automatic Dusk to dawn detection | Yes | with gradation | Yes |
| Configuration possibilities | Configurable | ||
| Electrical Specifications | |||
| Battery type | Lithium battery | Materials and finishes | |
| Battery capacity (ampere-hour) | >537Wh | Total length | 1530 mm |
| Battery voltage | 12.8 V | Total width | 390 mm |
| Battery charge and discharge cycles | 2000-3000 | Total height | 224 mm |
| Panel type | Monocrystalline | Color | Gray |
| Panel voltage | 18V | ||
| Peak panel intensity | 90 W | Standards and recommendations | |
| Type of charge controller | MPPT | Protection index code | IP66 |
| Network connection type | Off grid | Mechanical shock protection code | IK09 |
| Battery location | Inside Luminaire | Terms of use | |
| Initial Performance (IEC Compliant) | Ambient temperature range | -20 to +50 *C | |
| Initial luminous flux | >7800 Im | Ambient temperature range - load | 0 to+45 °C |
| Initial proximal color temperature | 2700-6500 K | Ambient temperature range - discharge (when the light is on) | -20 to +50 *C |
| Color rendering index (initial) | >70 | Autonomy | > 48 h (with fully charged battery) |
| Optional functions | Profil de gradation solaire | First 2 Hrs - On motion : 100%, without motion:30% | |
| CCTV | Yes | Next 3Hrs-On motion:60%,without motion:20% | |

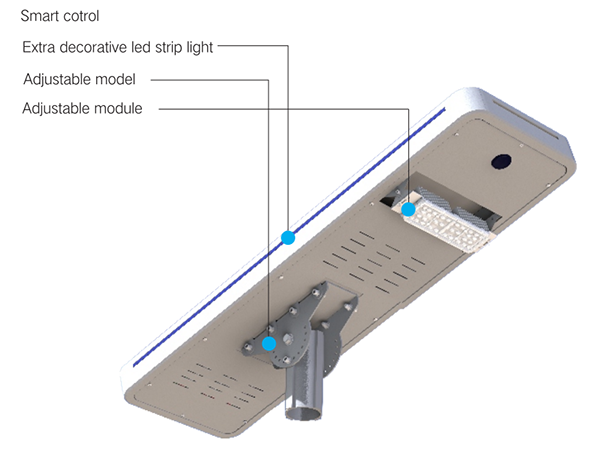

| Extra decorative led strip light | Yes | Next 6 Hrs-On motion:30%,without motion:10% | |
| Electrc supply | Yes | Rest of 1 Hrs-On motion:50%,without motion:30% | |
| Adjustable module | Yes | ||
