module

Our product lines cover LED street light, LED solar street light,LED garden light, LED bollard,LED tunnel light, LED wall light,LED road stud, LED flood light, LED panel light, LED tube, LED bulb, LED down light. Compared to traditional incandescent light

Technical Features

Body Aluminum body Input Voltage 220-240V Frequency（Hz） 50 - 60
LED Lumileds / Cree / Osram CRI >70Ra IP Rate IP66
Lens Modular Optical Lens Power   >0.95 RAL Code Customized
Diffuser PC diffuser Working Temp. -35℃-+55℃ Options LED application according
to desired correlated color
temperature(CCT).
Driver PHILIPS /MEANWELL / OSRAM / INVENTRONICS Humidity 10% - 90%



  • send an inquiry
  • Download leaflet
    • On a :Without　　|　　The next :Without
    Return

    Lighting Distribution Curve

    Responsive image

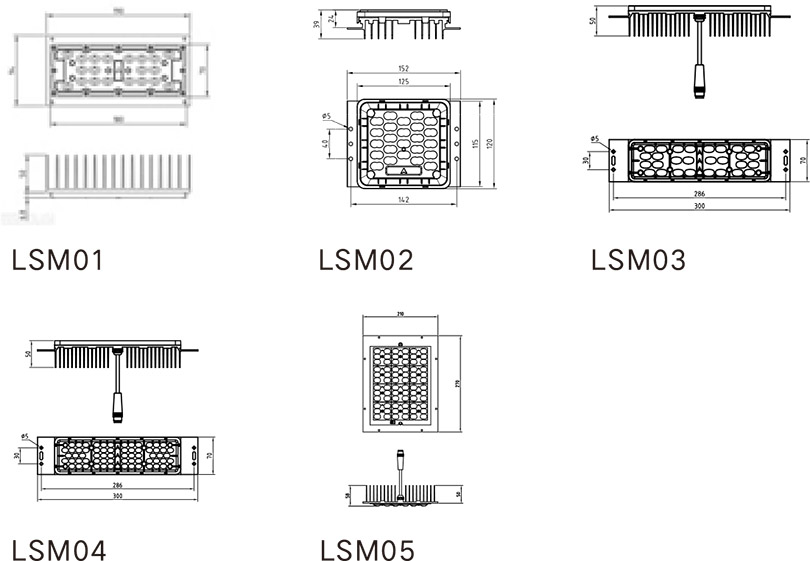

    Technical Drawing

    Responsive image

    Product Details

    Product Code

    NO

    Power

    W

    Luminous Flux

    lm

    Luminous Effic

    lm/W

    Dimensions

    H*W(mm)
    LSM01 30-60 2200-6500 120-150 190x94x57
    LSM02 20-50 2200-6500 120-150 152x120x40
    LSM03 30-60 2200-6500 120-150 300x70x50
    LSM04 30-60 2200-6500 120-150 300x70x50
    LSM05 50-150 2200-6500 120-150 210x270x50
    LSM06 50-150 2200-6500 120-150 210x270x50
