LD18

Technical Features

Body:  Die-casting Aluminum body Input Voltage:  220-240V Frequency (Hz): 50 - 60
LED:  Lumileds / Cree / Osram CRI:  >70Ra IP Rate:  IP66
Lens:  Modular Optical Lens Power:  Fac. >0.95 RAL Code: Customized
Diffuser:  Tempered glass diffuser Working Temp.: -35℃-+55℃ Options: LED application according to desired correlated color temperature(CCT).
Driver:  PHILIPS /MEANWELL / OSRAM / INVENTRONICS Humidity:  10% - 90%
  • send an inquiry
  • Download leaflet
    • On a :LD14　　|　　The next :Without
    Return

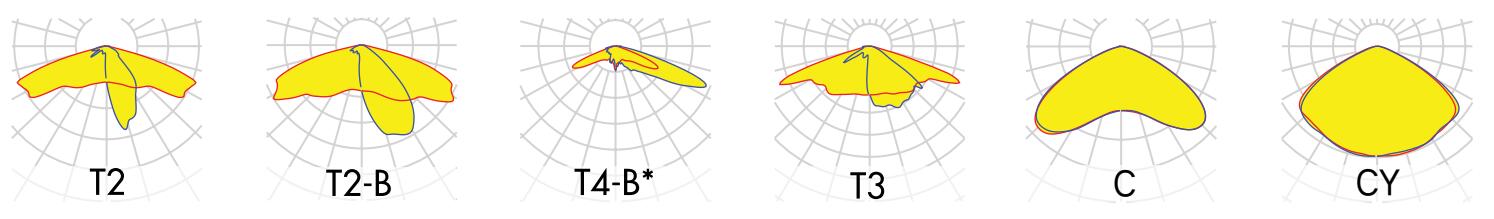

    Lighting Distribution Curve

    Responsive image

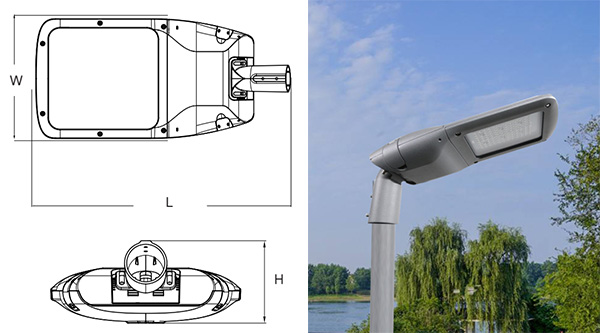

    Technical Drawing

    Responsive image

    Product Details

    Product Code
    NO    		 Power
    W    		 Luminous Flux
    lm    		 Color Temp.
    K    		 Luminous Effic
    lm/W    		 Dimensions
    H*W(mm)
    RL-LD18-40 40 4800-6000 2200-6500 120-150 650x280x160
    RL-LD18-60 60 7200-9000 2200-6500 120-150 650x280x160
    RL-LD18-80 80 9600-12000 2200-6500 120-150 650x280x160
    RL-LD18-100 100 12000-15000 2200-6500 120-150 715x315x165
    RL-LD18-120 120 14400-18000 2200-6500 120-150 715x315x165
    RL-LD18-150 150 19200-24000 2200-6500 120-150 775x375x140
    RL-LD18-200 200 24000-30000 2200-6500 120-150 775x375x140
    RL-LD18-220 220 36400-33000 2200-6500 120-150 775x375x140
