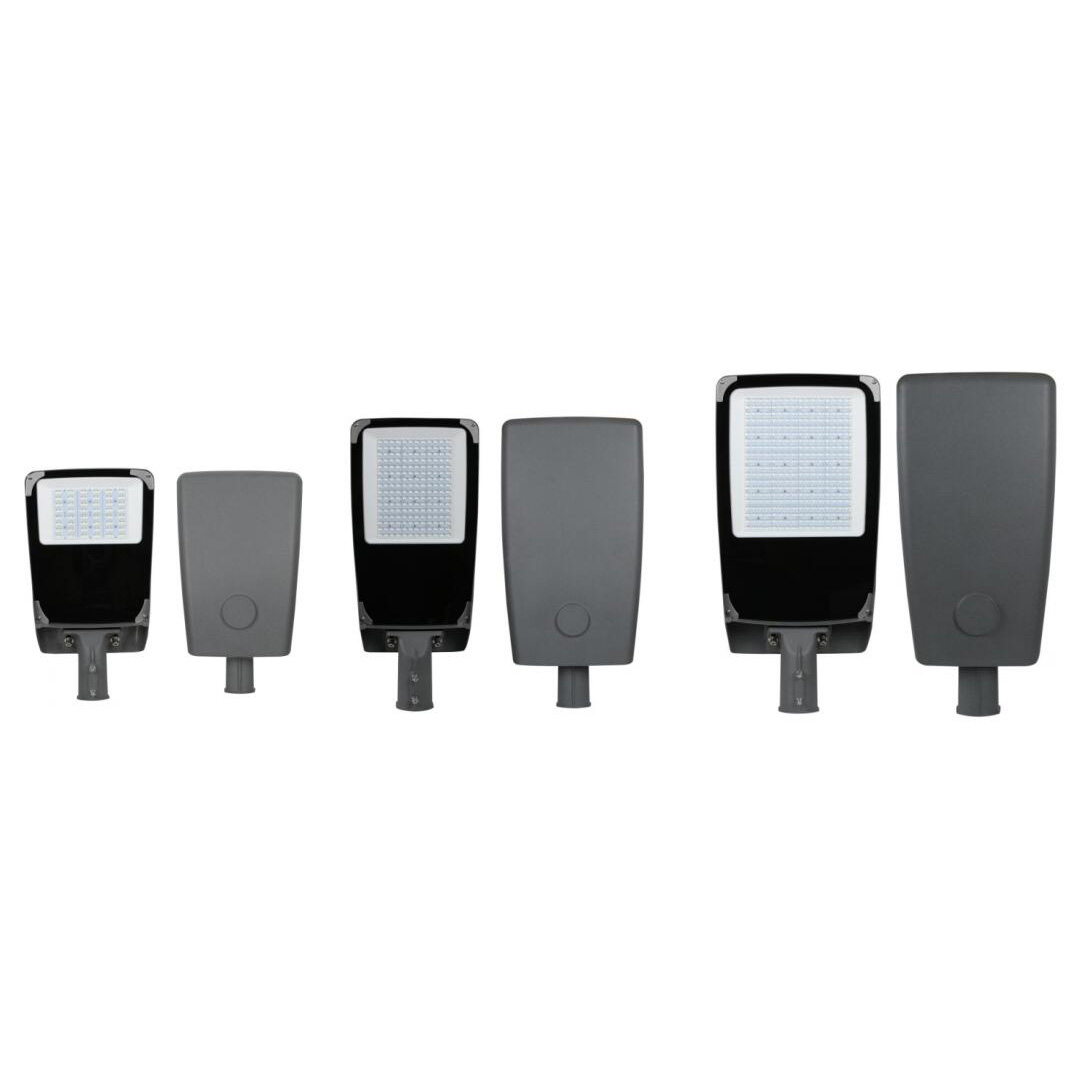

LD14

Technical Features

Body: Die-casting Aluminum body Input Voltage: 220-240V Frequency (Hz): 50 - 60
LED: Lumileds / Cree / Osram CRI: >70Ra IP Rate: IP66
Lens: Modular Optical Lens Power: Fac. >0.95 RAL Code: Customized
Diffuser: Tempered glass diffuser Working Temp.: -35℃-+55℃ Options: LED application according to desired correlated color temperature(CCT).
Driver: PHILIPS /MEANWELL / OSRAM / INVENTRONICS Humidity: 10% - 90%
  • send an inquiry
  • Download leaflet
    • On a :RL-E01　　|　　The next :LD18
    Return

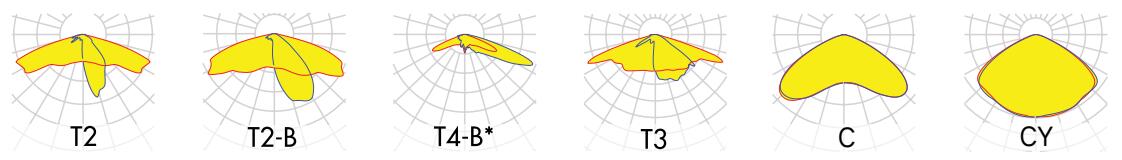

    Lighting Distribution Curve

    Responsive image

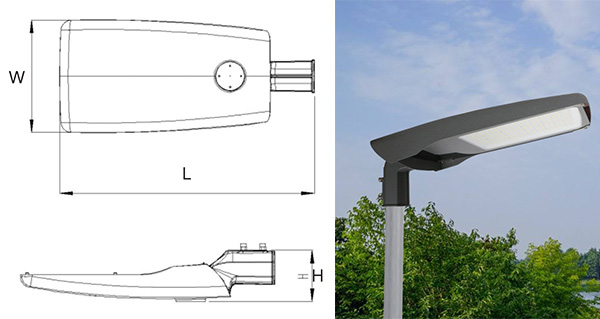

    Technical Drawing

    Responsive image

    Product Details

    Product Code
    NO    		 Power
    W    		 Luminous Flux
    lm    		 Color Temp.
    K    		 Luminous Effic
    lm/W    		 Dimensions
    H*W(mm)
    RL-LD14-40 40 4800-6000 2200-6500 120-150 481x260x120
    RL-LD14-60 60 7200-9000 2200-6500 120-150 481x260x120
    RL-LD14-80 80 9600-12000 2200-6500 120-150 481x260x120
    RL-LD14-100 100 12000-15000 2200-6500 120-150 594x263x120
    RL-LD14-120 120 14400-18000 2200-6500 120-150 594x263x120
    RL-LD14-150 150 19200-24000 2200-6500 120-150 594x263x120
    RL-LD14-200 200 24000-30000 2200-6500 120-150 640x315x127
    RL-LD14-220 220 26400-33000 2200-6500 120-150 640x315x127
    RL-LD14-240 240 28800-36000 2200-6500 120-150 640x315x127
