LSG35

Our product lines cover LED street light, LED solar street light,LED garden light, LED bollard,LED tunnel light, LED wall light,LED road stud, LED flood light, LED panel light, LED tube, LED bulb, LED down light. Compared to traditional incandescent light

Technical Features

Body Die-casting Aluminum body Input Voltage 220-240V Frequency（Hz） 50 - 60
LED Lumileds / Cree / Osram CRI >70Ra IP Rate IP66
Lens Modular Optical Lens Power   >0.95 RAL Code Customized
Diffuser PC diffuser Working Temp. -35℃-+55℃ Options LED application according
to desired correlated color
temperature(CCT).
Driver PHILIPS /MEANWELL / OSRAM / INVENTRONICS Humidity 10% - 90%



  • send an inquiry
  • Download leaflet
    • On a :LSG23　　|　　The next :LSM01
    Return

    Lighting Distribution Curve

    Responsive image

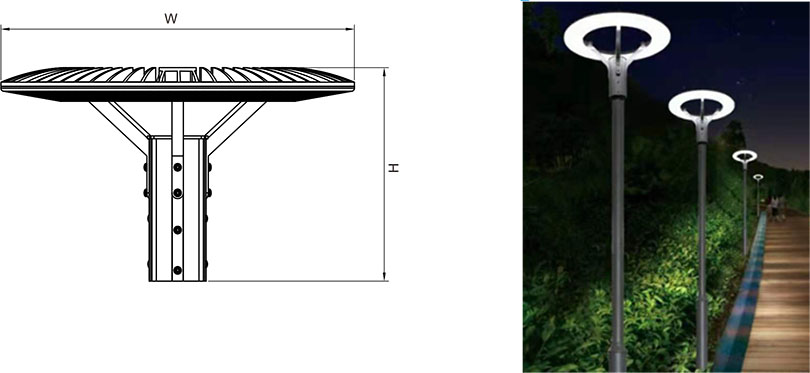

    Technical Drawing

    Responsive image

    Product Details

    Product Code

    NO

    Power

    W

    Luminous Flux

    lm

    Color Temp.

    K

    Luminous Effic

    lm/W

    Dimensions

    H*W(mm)

    Pcs/Pack

    Package

    (mm)
    LSG35-30 30 3600-4500 2200-6500 120-150 375*Φ620 1 630*630*430
    LSG35-40 40 4800-6000 2200-6500 120-150 375*Φ620 1 630*630*430
    LSG35-50 50 6000-7500 2200-6500 120-150 375*Φ620 1 630*630*430
    LSG35-60 60 7200-9000 2200-6500 120-150 375*Φ620 1 630*630*430
    LSG35-80 70 9600-12000 2200-6500 120-150 375*Φ620 1 630*630*430
    LSG35-100 70 12000-15000 2200-6500 120-150 375*Φ620 1 630*630*430
    LSG35-120 70 8400-10500 14400-18000 120-150 375*Φ620 1 630*630*430
    LSG35-150 70 8400-10500 18000-22500 120-150 375*Φ620 1 630*630*430
