ody: | High intensity Spinning Aluminum body | Input Voltage: | 220-240V | Frequency(Hz): | 50 - 60 |
LED: | Lumileds / Cree / Osram | CRI: | >70Ra | IP Rate: | IP66 |
Lens: | Modular Optical Lens | Power: | Fac. >0.95 | RAL Code: | Customized |
Diffuser: | PC diffuser | Working Temp.: | -35℃-+55℃ | Options: | LED application according to desired correlated color temperature(CCT). |
Driver: | PHILIPS /MEANWELL / OSRAM / INVENTRONICS | Humidity: | 10% - 90% |
Product Code NO |
Power W |
Luminous Flux lm |
Color Temp. K |
Luminous Effic lm/W |

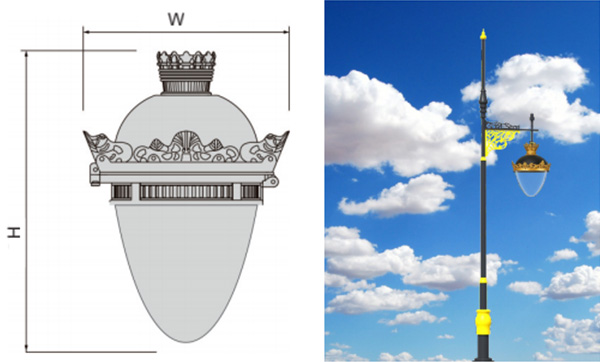

Dimensions H*W(mm) |
Pcs/Pack | Package (mm) |
LSG12A-30 | 30 | 3600-4500 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
LSG12A-40 | 40 | 4800-6000 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
LSG12A-60 | 60 | 7200-9000 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
LSG12A-80 | 80 | 9600-12000 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
LSG12A-100 | 100 | 12000-15000 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
LSG12A-120 | 120 | 14400-18000 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
LSG12A-160 | 160 | 19200-24000 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
LSG12A-180 | 180 | 21600-27000 | 2200-6500 | 120-150 | 675*Φ440 | 1 | 500*500*850 |
