LSG12-3

Technical Features

Body:  Die-casting Aluminum body Input Voltage:  220-240V Frequency(Hz): 50 - 60
LED:  Lumileds / Cree / Osram CRI:  >70Ra IP Rate:  IP66
Lens:  Modular Optical Lens Power:  Fac. >0.95 RAL Code: Customized
Diffuser:  PC diffuser Working Temp.: -35℃-+55℃ Options: LED application according to desired correlated color temperature(CCT).
Driver:  PHILIPS /MEANWELL / OSRAM / INVENTRONICS Humidity:  10% - 90%
  • send an inquiry
  • Download leaflet
    • On a :LSG12-2　　|　　The next :LSG12A
    Return

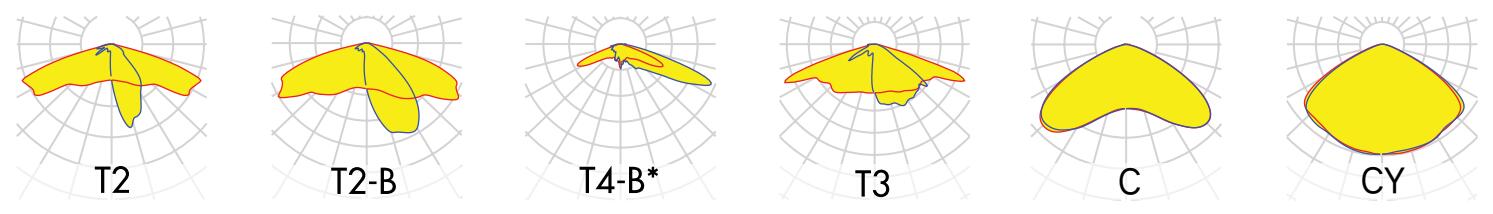

    Lighting Distribution Curve

    Responsive image

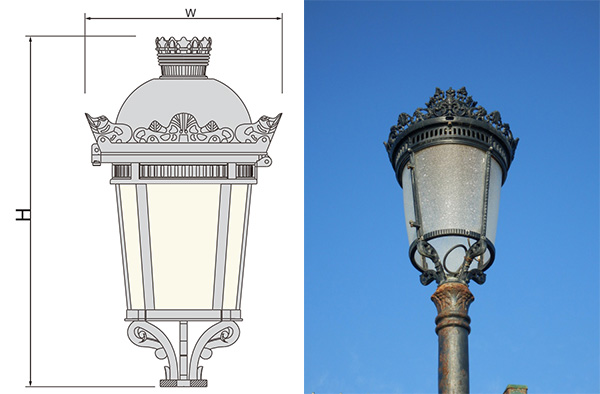

    Technical Drawing

    Responsive image

    Product Details

    Product Code
    NO    		 Power
    W    		 Luminous Flux
    lm    		 Color Temp.
    K    		 Luminous Effic
    lm/W    		 Dimensions
    H*W(mm)    		 Pcs/Pack Package
    (mm)
    LSG12-30 30 3600-4500 2200-6500 120-150 850*Φ500 1 520*520*875
    LSG12-40 40 4800-6000 2200-6500 120-150 850*Φ500 1 520*520*875
    LSG 12-60 60 7200-9000 2200-6500 120-150 850*Φ500 1 520*520*875
    LSG 12-80 80 9600-12000 2200-6500 120-150 850*Φ500 1 520*520*875
    LSG12-100 100 12000-15000 2200-6500 120-150 850*Φ500 1 520*520*875
    LSG12-120 120 14400-18000 2200-6500 120-150 850*Φ500 1 520*520*875
    LSG12-160 160 19200-24000 2200-6500 120-150 850*Φ500 1 520*520*875
    LSG12-180 180 21600-27000 2200-6500 120-150 850*Φ500 1 520*520*875
