LSG33A

Our product lines cover LED street light, LED solar street light,LED garden light, LED bollard,LED tunnel light, LED wall light,LED road stud, LED flood light, LED panel light, LED tube, LED bulb, LED down light. Compared to traditional incandescent light

Technical Features

Body High intensity Spinning Aluminum body Input Voltage 220-240V Frequency（Hz） 50 - 60
LED Lumileds / Cree / Osram CRI >70Ra IP Rate IP66
Lens Modular Optical Lens Power   >0.95 RAL Code Customized
Diffuser Tempered glass diffuser Working Temp. -35℃-+55℃ Options LED application according
to desired correlated color
temperature(CCT).
Driver PHILIPS /MEANWELL / OSRAM / INVENTRONICS Humidity 10% - 90%
  • send an inquiry
  • Download leaflet
    • On a :LSG26　　|　　The next :LSG33
    Return

    Lighting Distribution Curve

    Responsive image

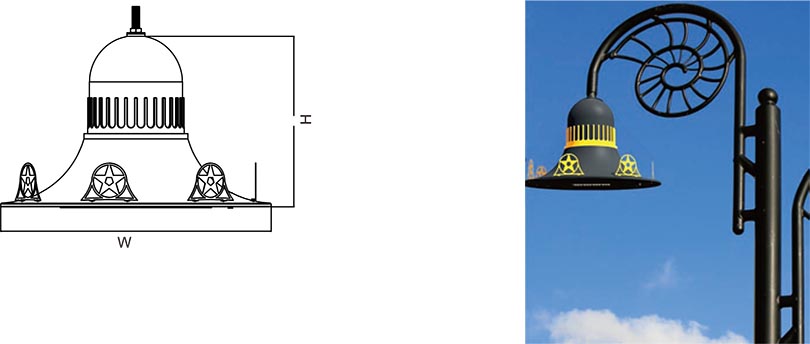

    Technical Drawing

    Responsive image

    Product Details

    Product Code

    NO

    Power

    W

    Luminous Flux

    lm

    Color Temp.

    K

    Luminous Effic

    lm/W

    Dimensions

    H*W(mm)

    Pcs/Pack

    Package

    (mm)
    LSG33A-60 60 7200-9000 2200-6500 120-150 473*Φ750 1 800*800*635
    LSG33A-80 80 9600-12000 2200-6500 120-150 473*Φ750 1 800*800*635
    LSG33A-100 100 12000-15000 2200-6500 120-150 473*Φ750 1 800*800*635
    LSG33A-120 120 14400-18000 2200-6500 120-150 473*Φ750 1 800*800*635
    LSG33A-150 150 18000-22500 2200-6500 120-150 473*Φ750 1 800*800*635
    LSG33A-200 200 24000-30000 2200-6500 120-1 50 473*Φ750 1 800*800*635
    LSG33A-240 240 28800-36000 2200-6500 120-150 473*Φ750 1 800*800*635
